microRAMAN
Detectable compounds:
- explosives
- narcotics
- chemical warfare
- pharmaceutical products
- hazardous material
- food materials (additives)
- the fastest
- the most accurate
- the smallest
- the lightest
- the most robust and reliable
- the easiest to operate
…. pocket RAMAN SPECTROMETER – identifier

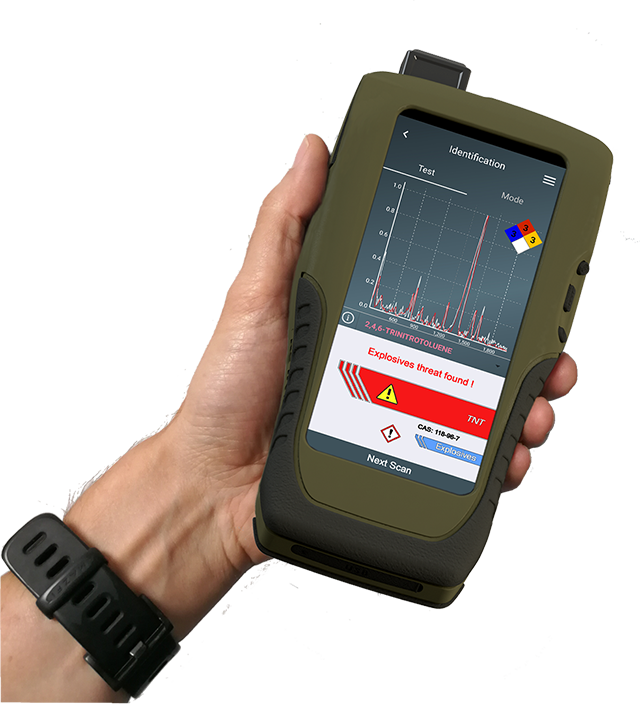

New revolutionary and miniature Raman spectrometer
Weight:
- 650 gramm
Dimensions:
- Length: 225 mm
- Height: 38 mm
- Width: 109 mm
Technical parameters:
- Laser type: 785 nm semiconductor laser
- Laser output power: Fully adjustable up to 470 mW
- Detector type: Advanced CMOS strip
- Spectral range: 200 – 2000 cm-1
- Spectral resolution: 12 cm-1
- Laser class: 3B
- Detection/Identification time: typically 2 seconds
- Delayed Scan: 0 – 30 seconds
- Scan time: 2 – 20 seconds
- Exposure: Automatic or manual with pre-settable scan delay
- Connectivity: WiFi, Bluetooth, USB 2.0
- Data download: External Flash Drive
- Optics: Interchangeable fix focus lenses adapters and vial holder adapter
- Screen: Color high resolution 6.5“ touch screen
- Battery: Li-Ion, 8 – 10 hours operation for one charge
- External Power Supply: 110 – 240 V AC, 100 Watts (included)
- Car charging adapter: CLA adapter (optional)
- Operating temperature range: -15 to +55 °C
- Storage temperature range: -25 to +55 °C
- Robotic Applications: WiFi remote control
- Consumables: No consumables required
- Certification: CE, ROHS
Complete specifications in the product brochure.
Detectable compounds:
- explosives
- narcotics
- chemical warfare
- pharmaceutical products
- hazardous material
- food materials (additives)
- the fastest
- the most accurate
- the smallest
- the lightest
- the most robust and reliable
- the easiest to operate
…. pocket RAMAN SPECTROMETER – identifier
New revolutionary and miniature Raman spectrometer
Weight:
Weight: 650 gramm
Dimensions:
Length: 225 mm
Height: 38 mm
Width: 109 mm
Technical parameters:
- Laser type: 785 nm semiconductor laser
- Laser output power: Fully adjustable up to 470 mW
- Detector type: Advanced CMOS strip
- Spectral range: 200 – 2000 cm-1
- Spectral resolution: 12 cm-1
- Laser class: 3B
- Detection/Identification time: typically 2 seconds
- Delayed Scan: 0 – 30 seconds
- Scan time: 2 – 20 seconds
- Exposure: Automatic or manual with pre-settable scan delay
- Connectivity: WiFi, Bluetooth, USB 2.0
- Data download: External Flash Drive
- Optics: Interchangeable fix focus lenses adapters and vial holder adapter
- Screen: Color high resolution 6.5“ touch screen
- Battery: Li-Ion, 8 – 10 hours operation for one charge
- External Power Supply: 110 – 240 V AC, 100 Watts (included)
- Car charging adapter: CLA adapter (optional)
- Operating temperature range: -15 to +55 °C
- Storage temperature range: -25 to +55 °C
- Robotic Applications: WiFi remote control
- Consumables: No consumables required
- Certification: CE, ROHS
Complete specifications in the product brochure.
Identification in seconds
Powerful 8-core CPU
Fits in hand
Intuitive operation
Advanced algorithms
Large touch screen
- Identifies the widest spectrum of substances in solid and/or liquid form, including explosives, narcotics, chemical warfare agents, pharmaceutical products, hazardous materials and food additives, chem residues
- More than 24 000 substances in the libraries, customer adding of unknown compounds available
- Advanced mixture identification due to sophisticated determination algorithm
- Extremely user-friendly and intuitive operation via touch-screen
- Heavy-duty robust case designed for the hardest field/military conditions
- Robotic integration includes full remote wire-less operation
- Large colour display with self-explanatory graphic output
Environmental
- No radioactive source inside
- No toxic materials inside
- No toxic consumables (no consumables at all)
- Product fully environmentally recyclable at manufacturer site
Training
- No special operator’s training and/or qualification required!
Various types of samples tested
Solid
Liquid
Powder
